[bug report] Rendering Engine KiCad files

ℹ️Help Zone Misc
,
1

Hello Aisler,

i have noticed a difference in the rendering engine:

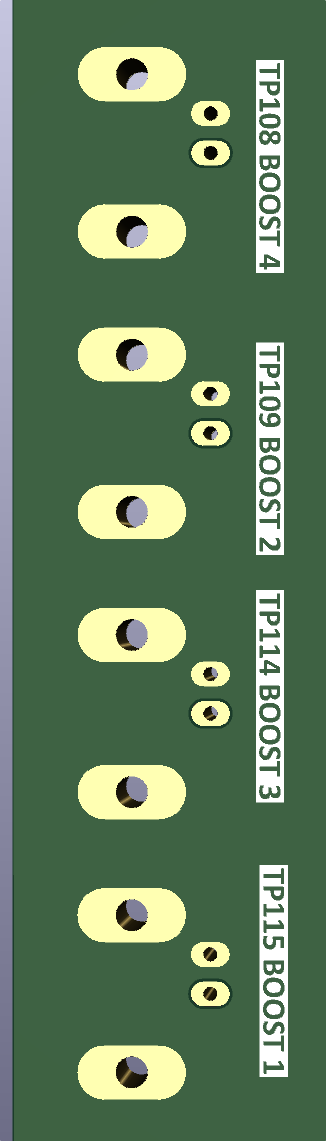

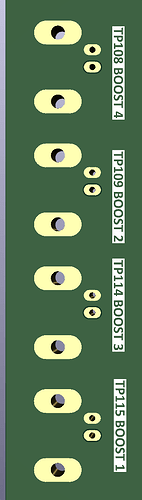

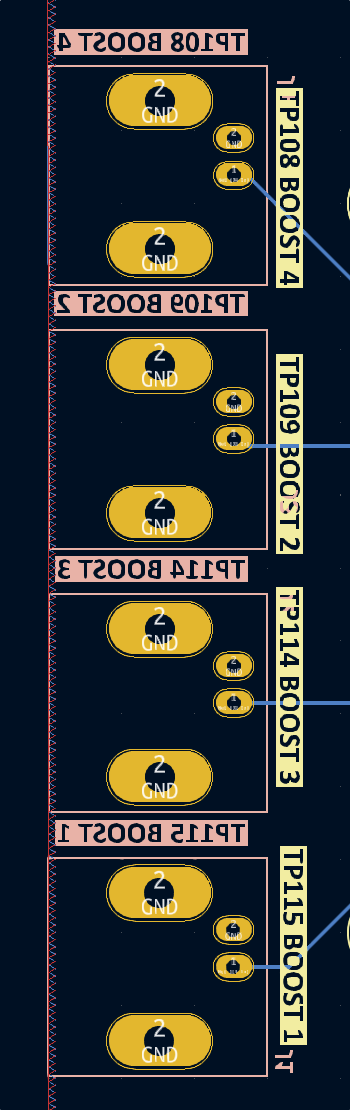

How it should look like:

image326×1141 19 KB

image350×1110 50.3 KB

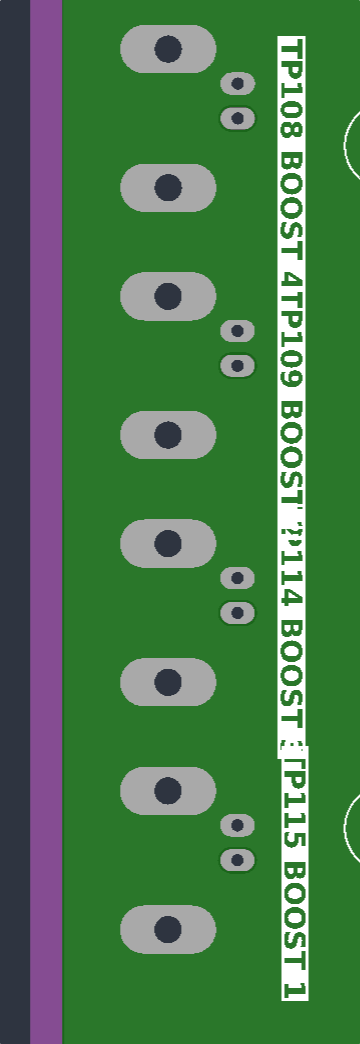

How your rendering engine displays it:

image360×1044 6.98 KB

I am on this version of KiCad

Application: KiCad PCB Editor x64 on x64

Version: 7.0.9, release build

Libraries:
wxWidgets 3.2.3
FreeType 2.12.1
HarfBuzz 8.2.1
FontConfig 2.14.2
libcurl/8.4.0-DEV Schannel zlib/1.3

Platform: Windows 11 (build 22631), 64-bit edition, 64 bit, Little endian, wxMSW

Build Info:
Date: Nov 5 2023 19:26:40
wxWidgets: 3.2.3 (wchar_t,wx containers)
Boost: 1.83.0
OCC: 7.7.1
Curl: 8.4.0-DEV
ngspice: 41
Compiler: Visual C++ 1936 without C++ ABI

Build settings:
KICAD_SPICE=ON

BR
Andreas

2

This is a known issue, if you’re using our plugin, the files are created locally and this should not happen then.

1 Like
3

Just out of curiosity, which font are you using in this project @andreas-eet ?

4

It seems that’s the problem - we used Calibri and not the KiCad Font.


5

This makes sense as Calibri (and others) are Microsoft owned fonts. I added some replacements to our KiCad version for popular fonts. Please reupload your project to see whether this solves the issue.

1 Like
6

It does solve the issue!
