Würth press fit (THT) connectors

I have a question regarding the Würth press fit connectors.

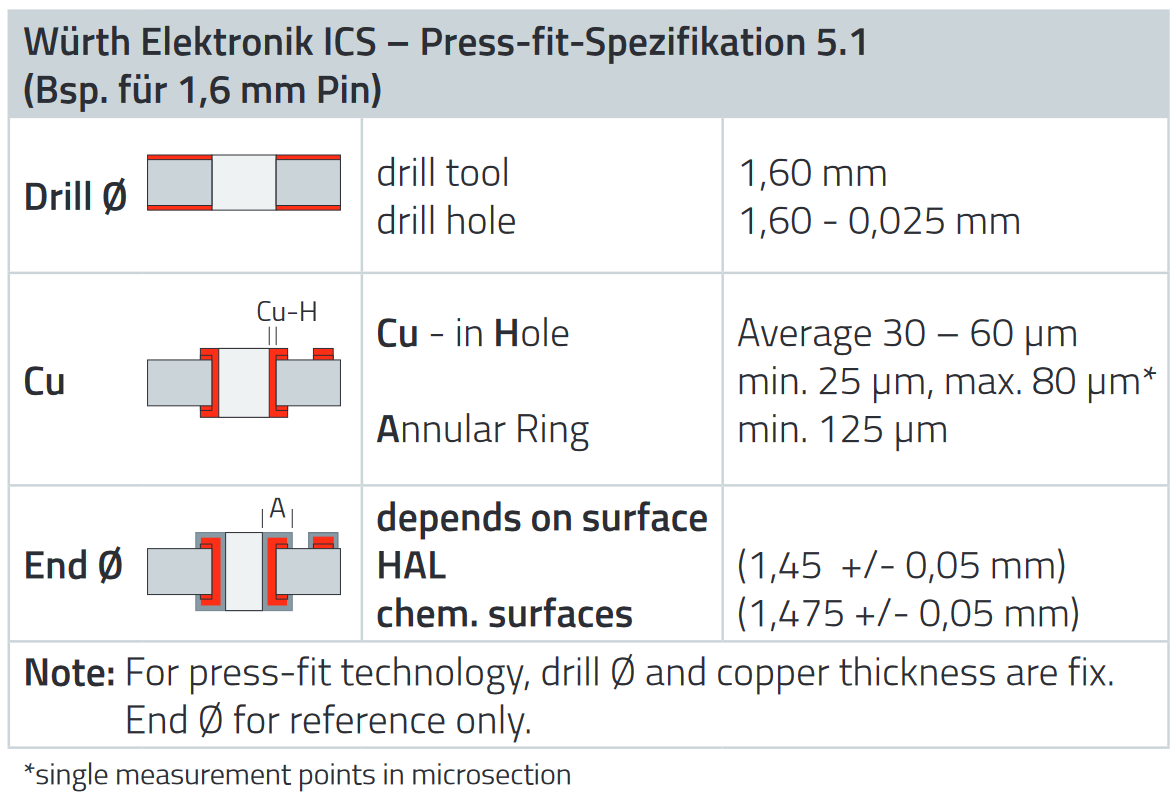

As described in this pdf or the attached screenshot there needs to be a specific hole size and copper thickness in the vias to use them.

Can you tell me whether this is compatible with your production technology?

Thank you for your time and best regards
Lukas

Plating holes add around 22 µm of bare copper. The thickness of ENIG varies around 4-7 µm HASL around 1 - 40 µm.

These numbers are off the top of my head. @Manuel-from-AISLER Can you verify the numbers with our production people?

1 Like

We are reaching out to Würth regarding Press Fit Components, for now, we don’t have a process in Place to ensure the right drill tool diameter. I’ll keep you updated.

1 Like
