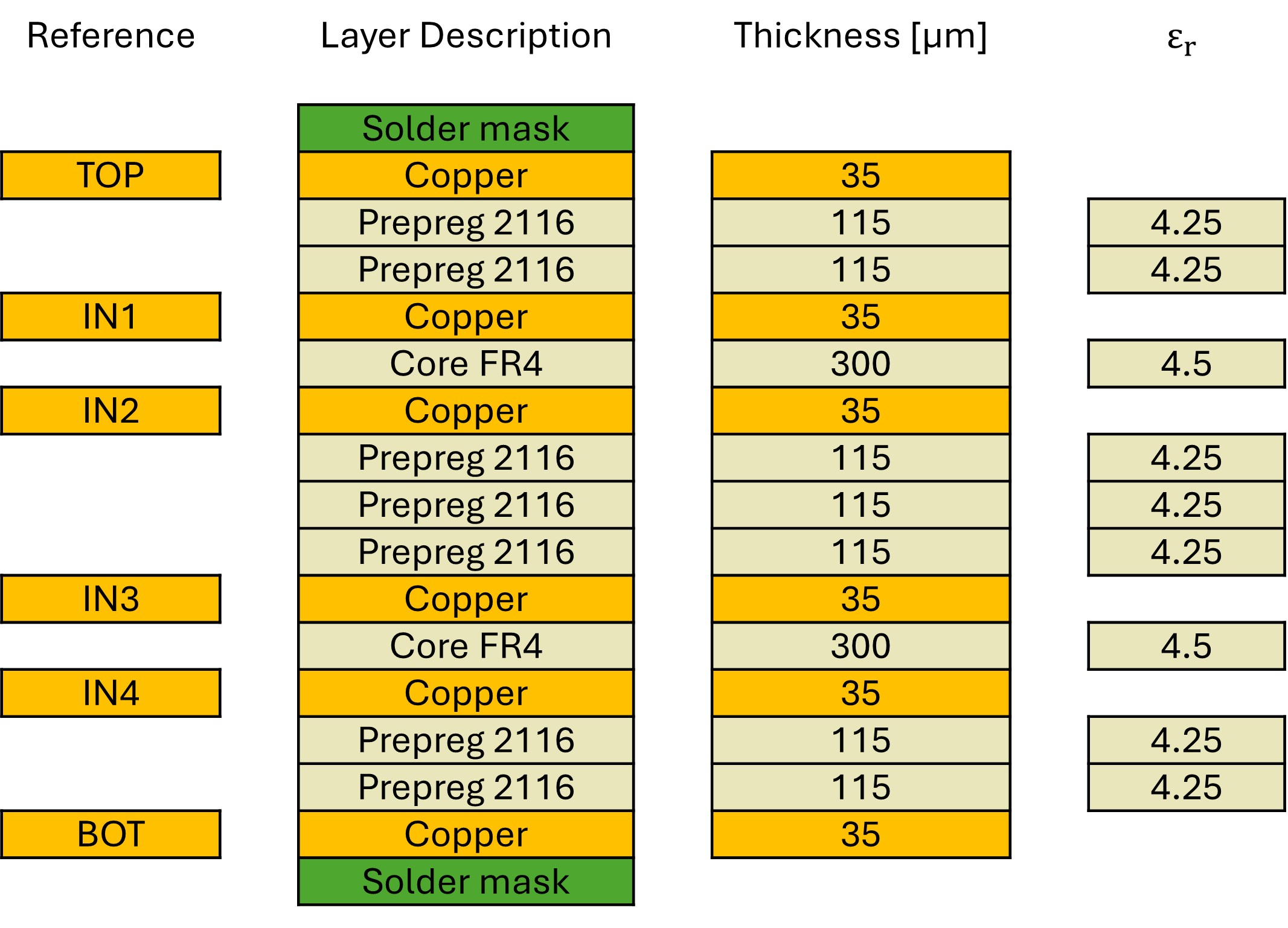

Stackup
Final Thickness: 1.6 mm +/- 10%
Impedances
The following track layouts can be used to realize defined impedance. Please note that these values only provide a basic orientation. Interference factors such as angles, meanders or vias in the routing of the tracks may negatively affect the intended impedance.
| Type | Resistance [Ω] | Signal | Reference | Width [µm] | Space [µm] | Width [µm] |
|---|---|---|---|---|---|---|
| SE | 50 | TOP | IN1 | 395 | - | - |
| DP | 90 | TOP | IN1 | 230 | 120 | 230 |
| DP | 100 | TOP | IN1 | 180 | 130 | 180 |
| SE | 50 | IN1 | IN1/IN3 | 255 | - | - |
| DP | 90 | IN1 | IN1/IN3 | 160 | 145 | 160 |
| DP | 100 | IN1 | IN1/IN3 | 135 | 170 | 135 |
| SE | 50 | IN1 | IN1/IN4 | 320 | - | - |
| DP | 90 | IN1 | IN1/IN4 | 180 | 145 | 180 |
| DP | 100 | IN1 | IN1/IN4 | 165 | 195 | 165 |
| SE | 50 | IN2 | IN4/IN1 | 320 | - | - |
| DP | 90 | IN2 | IN4/IN1 | 180 | 145 | 180 |
| DP | 100 | IN2 | IN4/IN1 | 165 | 195 | 165 |
| SE | 50 | IN2 | IN4/IN2 | 255 | - | - |
| DP | 90 | IN2 | IN4/IN2 | 160 | 145 | 160 |
| DP | 100 | IN2 | IN4/IN2 | 135 | 170 | 135 |
| SE | 50 | BOT | IN4 | 395 | - | - |
| DP | 90 | BOT | IN4 | 230 | 120 | 230 |
| DP | 100 | BOT | IN4 | 180 | 130 | 180 |
SE = Single Ended, DP = Differential Pairs
