Setting up AISLER Push for Altium
Last Updated: 30.05.2024
Using Push for Altium we offer a comfortable way to upload your ODB++ manufacturing files from within Altium Designer to our platform.
Copy you Organization Access Key
- Open https://aisler.net and click on âAccountâ in the upper-right corner of the page.
- Click on âSettingsâ in the navigation menu on the left.
- Copy the value below âOrganization Access Keyâ. It should look like âf5c394b3db2f8d28ddf5â.
Add Publishing Destination

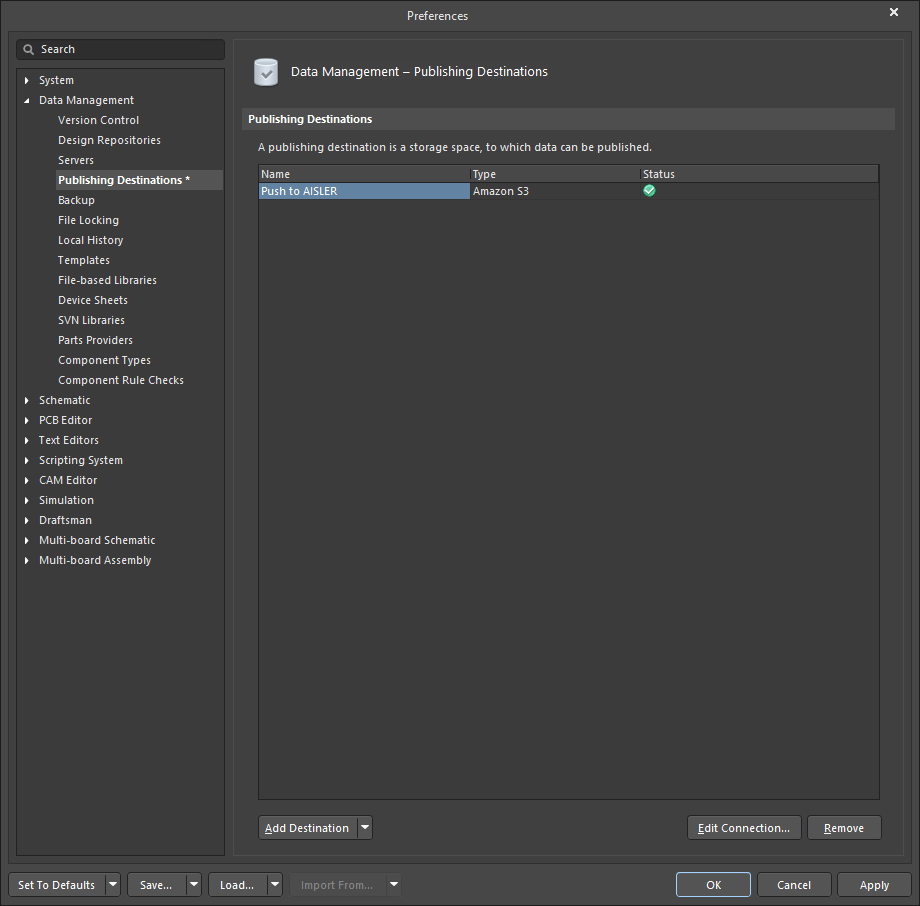

- Open the âPreferencesâ dialog by clicking the
button in the upper-right hand area of the design space. - Select âData Managmentâ â âPublishing Destinationsâ from the menu on the left.
- Using âAdd Destinationâ add a new " Amazon S3" destination.

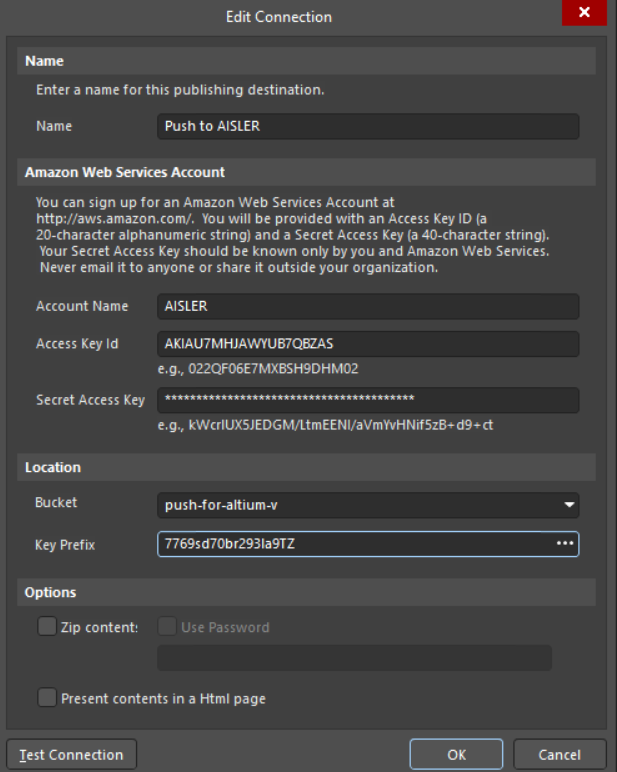

- Fill out all input fields as shown in the screenshot.
Name: Push to AISLER
Account Name: AISLER
Access Key Id: AKIAU7MHJAWYUB7QBZAS
Secret Access Key: y3jAQOlaGMXgvF0gx6PJNSqazxOP3bj2eeBirvwK
Bucket: push-for-altium-v
Key Prefix: Paste the âOrganization Access Keyâ from your organizationâs general settings as described in the first step.
When updating from the Gerber based Outjob make sure to uncheck Zip content !
Confirm the form. A new publishing destination should show up.
Import the output configuration
The Altium Outjob configuration file can be found on Github:
Click on the Download raw file button.
This will download the OutJob file into your Download Folder, copy the file into the folder where your Altium project is located.

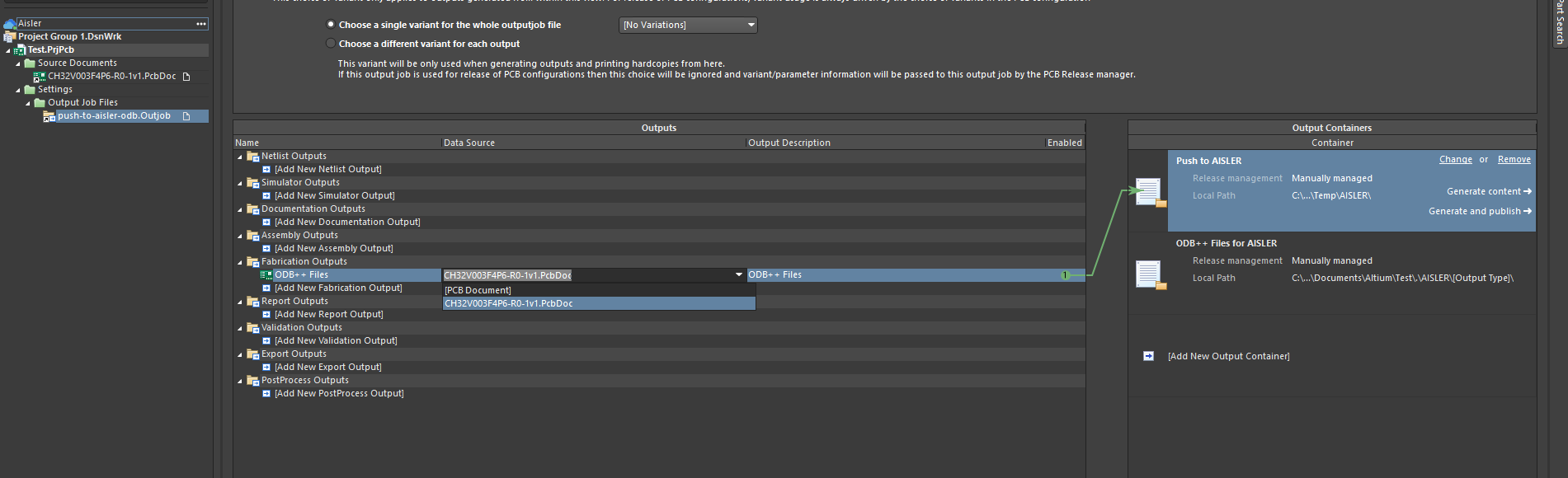

Using âAdd Existing to ProjectâŠâ on the âProjects Panelâ, import the Outjob configuration to your project and assign the layout you would like to submit.
Make sure your PCB file and Outjob are in a project, the export will fail otherwise.
Push your project

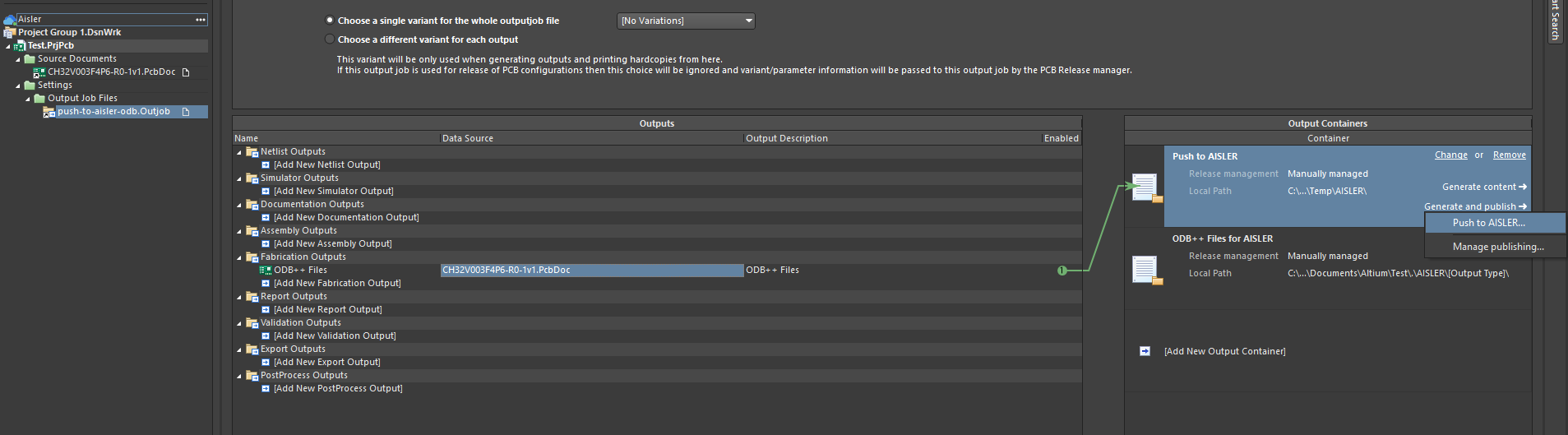

On the right hand side of the Outjob form, click âGenerate and Publishâ and select âPush to AISLERâŠâ.
After just a few seconds a prompt should open up. Enter either a new project name (âAwesome Projectâ) or copy an existing repository / project path (âsandbox/awesome_projectâ).
Setting custom Bridges

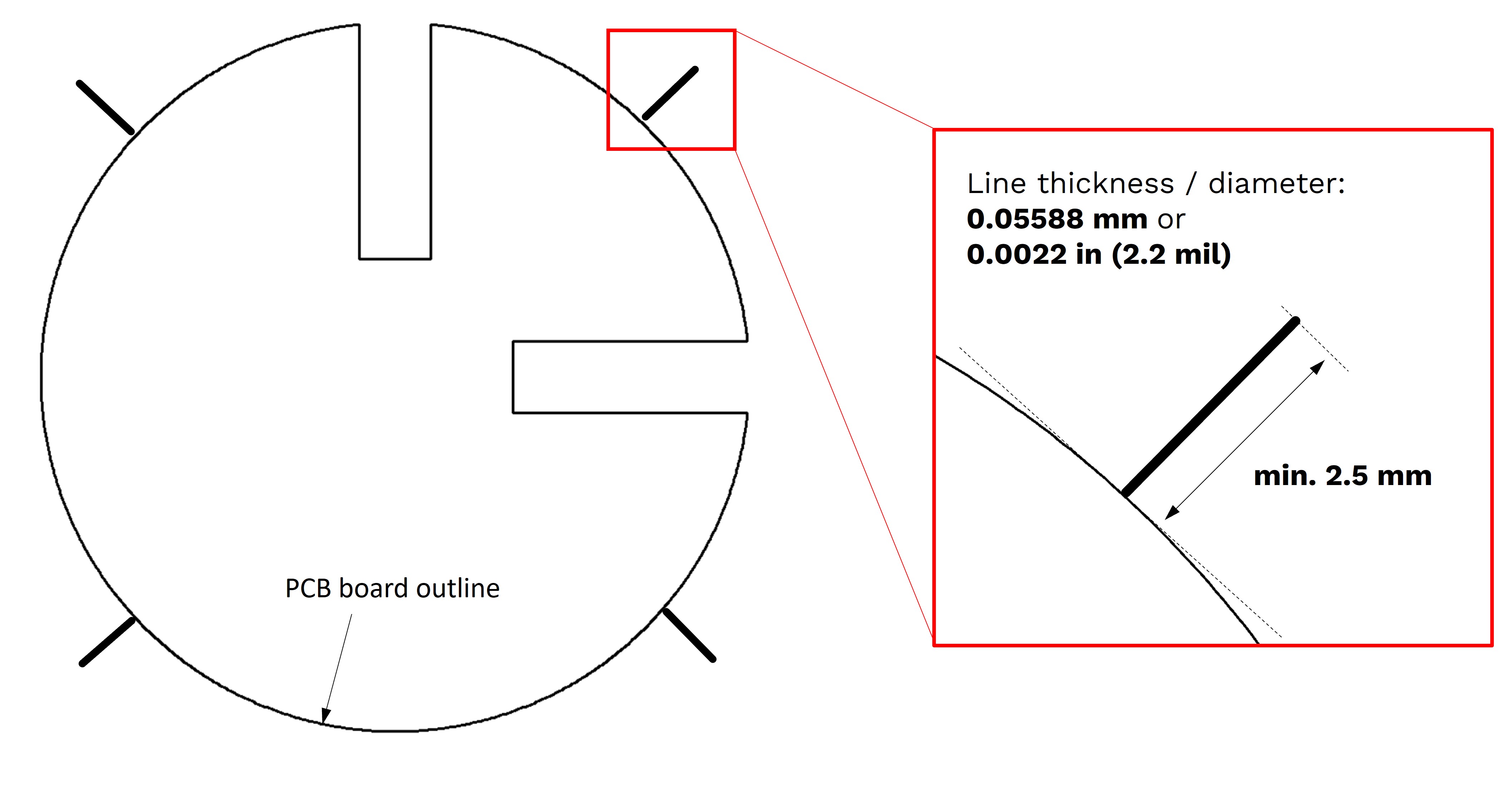

To set the position of custom bridges youâll have to draw a marker on a layer that is named aisler-bridges , you can either rename an existing mechanical layer or create a new one.
Important: The aisler-bridges layer needs to be included in the OutJob configuration, it is not selected by default.
Migrating from the legacy Gerber-based Altium outjob to ODB++
Please Note: This Guide is only applicable if you already installed the Altium Push Outjob. In case you are installing it for the first time follow the steps mentioned above.
Step 1: Update Publishing Destination Settings.
- Head to Preferences â Data managment â Publishing Destinations â AISLER Push.
- Click on Edit Connection
- Under Options unselect the Checkbox Zip content.
- Save the Settings.
Step 2: Removal of the old Outjob from the Project.
Navigate in your file structure to

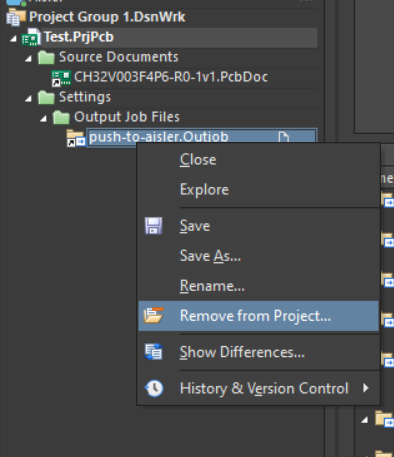

Select Exclude fom project.
Navigate to the file location and save the Outjob at a different location. In most cases the ODB++ is the better choice but during the transition period there might be things that not work, thus keep the Gerber.
Step 3: Adding the new Outjob.
- Using Right-click â âSave Link asâŠâ download our Altium Outjob Configuration .
- Using âAdd Existing to ProjectâŠâ on the âProjects Panelâ, import the Outjob configuration to your project and assign the layout you would like to submit.
- Make sure your PCB file and Outjob are in a project, the export will fail otherwise.
