About this tutorial

AISLER understands Gerber files generated from Labcenter Proteus. This tutorial shows you in six easy steps how your Proteus export will always succeed when imported.

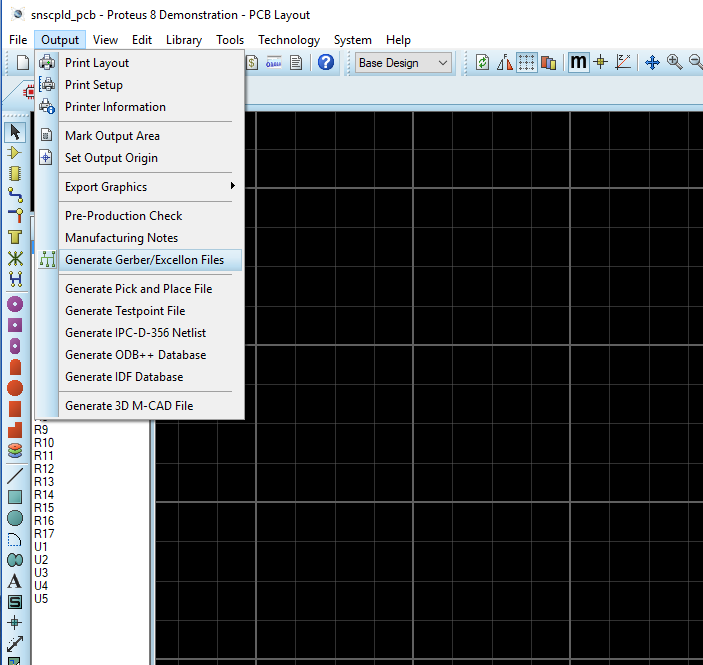

Step 1: Generate Gerber/Excellon Files

9fwyyzn0tubpb54zwxj4fa4hlo94craalqavk2x34n6c7m2sck
9fwyyzn0tubpb54zwxj4fa4hlo94craalqavk2x34n6c7m2sck703×665 34.8 KB

Step 2: Adjust Output

a) Change output to a single ZIP file

output-to-a-single-zip-file
output-to-a-single-zip-file561×553 18.9 KB

b) Change Gerber to RS274X

select-rs-274X
select-rs-274X561×553 18.9 KB

Step 3: Delete unneccessary files

3kuovcvooditdjs2un82pborbfjrbsztljc22oficue86k0rvt
3kuovcvooditdjs2un82pborbfjrbsztljc22oficue86k0rvt640×326 22 KB

Step 4: Rename files to fit AISLER’s naming scheme

27167xpy7qyuguxo7djsi5vor4x91dnpuedvi36mt8yfo80nre
27167xpy7qyuguxo7djsi5vor4x91dnpuedvi36mt8yfo80nre640×216 4.19 KB

Step 5: Zip up the folder

Step6: Profit :wink:

Upload your project
